ORBITA

Multi-Purpose Radar-Based Intelligence and Tracking Array

360° Reconnaissance, Surveillance, and Situational Awareness

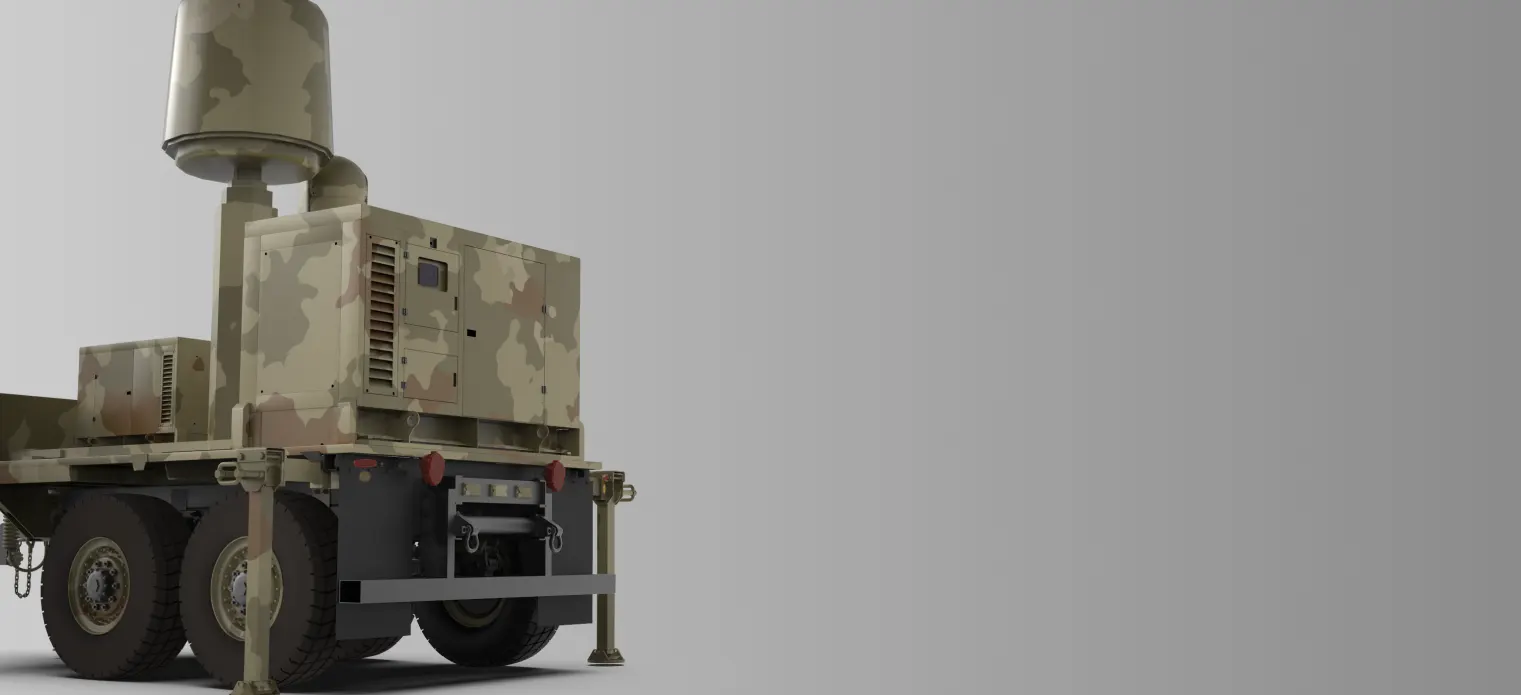

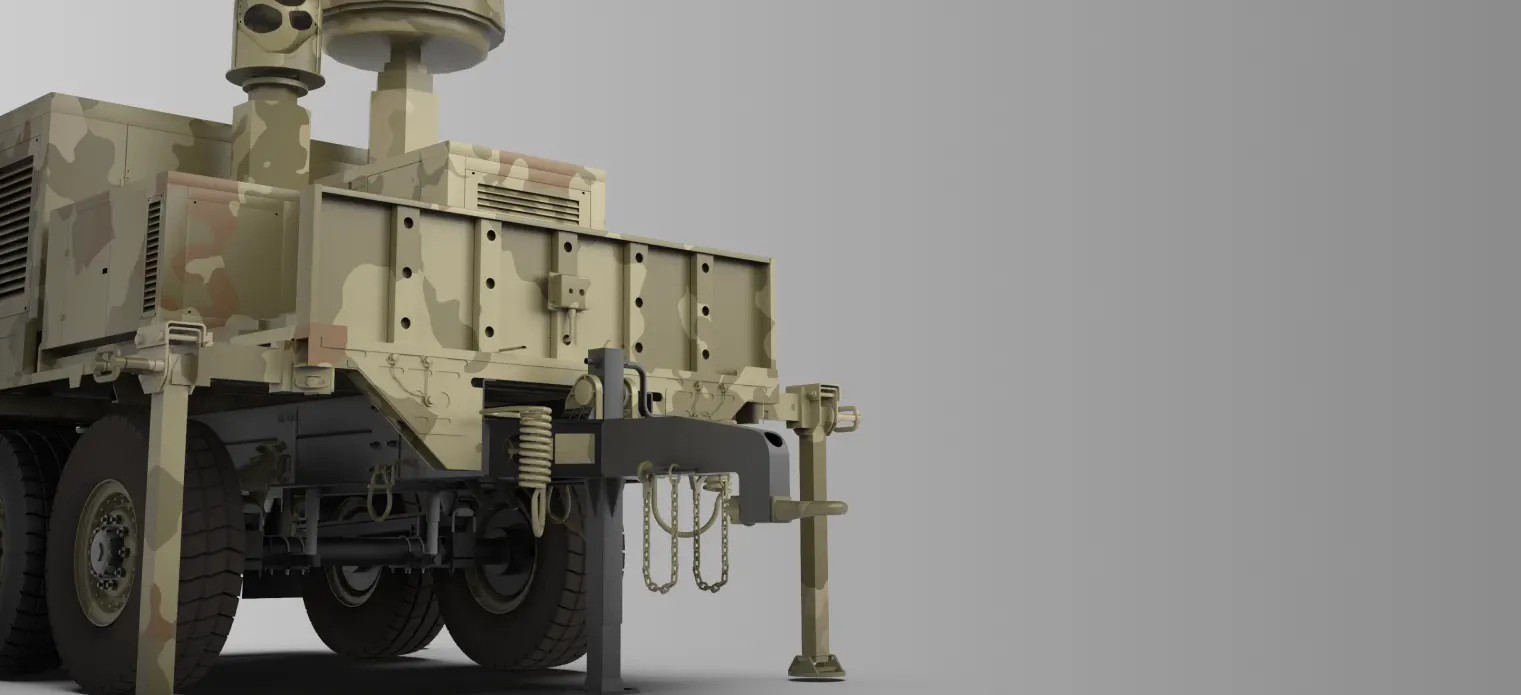

A rugged electronic warning system that provides 360° reconnaissance, surveillance, and situational awareness through a towed mobile platform integrated with multiple AESA radars and electro-optical sensors, designed to meet the demands of the modern contested battlefield environment. It offers tactical advantage with portability and rapid deployment capability in challenging terrain conditions.

Highlights

ORBITA’s advanced vision system provides uninterrupted surveillance capability in both day and night conditions. The system automatically detects and tracks distant targets, providing precise coordinate information. Full 360° scanning enables effective reconnaissance and surveillance operations over wide areas.
ORBITA’s radar system detects a broad range of threats, from small drones to large vehicles, at long distances. Simultaneous multi-target tracking ensures continuous situational awareness for operators. Provides reliable detection and warning capability under all weather conditions.
ORBITA generates its own power, allowing for extended independent operation. The platform can be rapidly deployed in challenging terrains and is immediately operational. Its mobile design enables easy transport to any required location and flexible deployment.

System Components and Technical Specifications
System Component	Technical Specification
AESA Radar	X-Band (8.3-8.6 GHz) electronically scanned phased array radar system, 360° coverage, multi-target detection and tracking capability
Electro-Optical System	Continuous day/night imaging and target designation system with multi-spectral sensor fusion
Thermal Camera (SWIR)	Advanced thermal detection and identification system with day vision camera
Thermal Camera (MWIR)	Advanced thermal detection and identification system with day vision camera
Daylight Camera	Full HD (1920x1080) optical imaging with digital zoom capability
Laser Rangefinder	Class 1M laser technology providing precise distance measurement and coordinate determination with ≥10km range
Power Options	Hybrid power management system integrating multiple power sources with smart distribution
Hybrid Generator	Monocrystalline silicon photovoltaic panels for sustainable energy generation (400W+)
Hibrit Jeneratör	Diesel/petrol alternator system for emergency power supply (3-5kW)
Battery Unit	Lithium-ion energy storage system enabling 48-72 hours of uninterrupted operation
Technical Performance Parameters
Radar Detection Range	4.5 km for 0.01m² RCS, 8.1 km for 0.10m² RCS
Simultaneous Target Tracking	125 targets
Operating Temperature	-35°C ~ +50°C
Protection Class	IP66 (dust/waterproof)
Compliance Standard	MIL-STD-810 (military environmental durability)

Our Core Advantages

Önder Defense’s Approach

Önder Defense adopts a revolutionary approach that eliminates the field commanders’ greatest challenge: “energy dependency.” ORBITA operates autonomously for 2 days without requiring any external power source. The system, deployable within minutes, transforms the user’s need for “instant operational readiness” into reality.

Precision Detection, Secure Operations

ORBITA’s 360° AESA radar system detects a wide range of threats—from small drones to large vehicles—at long distances. With the ability to track up to 125 targets simultaneously, it provides superior situational awareness in multi-threat scenarios. It even detects low radar cross-section targets, serving as an early warning system.

Intelligent Systems, Strong Defense

ORBITA’s fully indigenous command and control software integrates sensors of different brands onto a single platform. Through networked coordination of multiple ORBITA units, an integrated wide-area surveillance network is established. With secure remote management, operators conduct risk-free command and control, while hardware-independent scalability is ensured.

Operational Superiority

Coverage Area
Seamless environmental scanning with multiple AESA radars

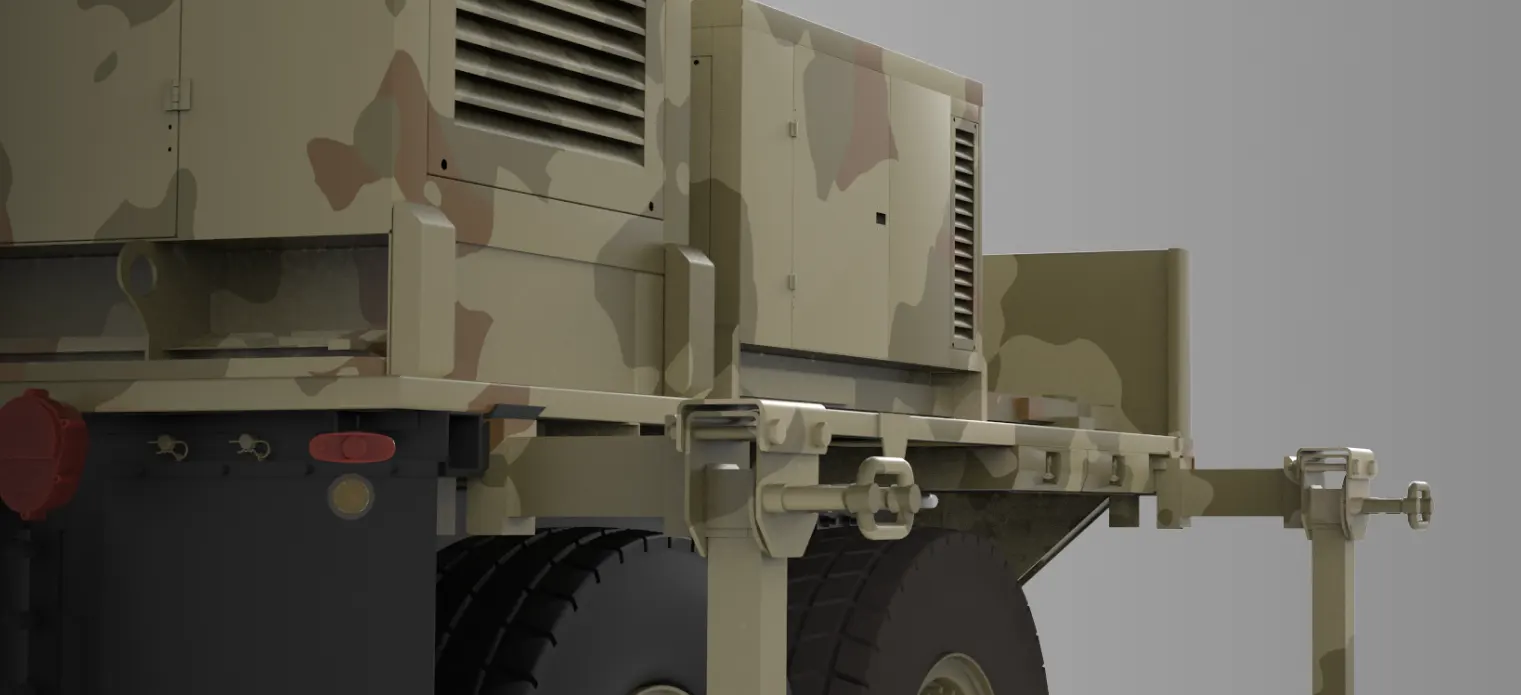

Mobile Platform
Rapid deployment in challenging terrain conditions
Energy System
Independent operation without a fixed power source
Management
Encrypted control through integrated command and control infrastructure

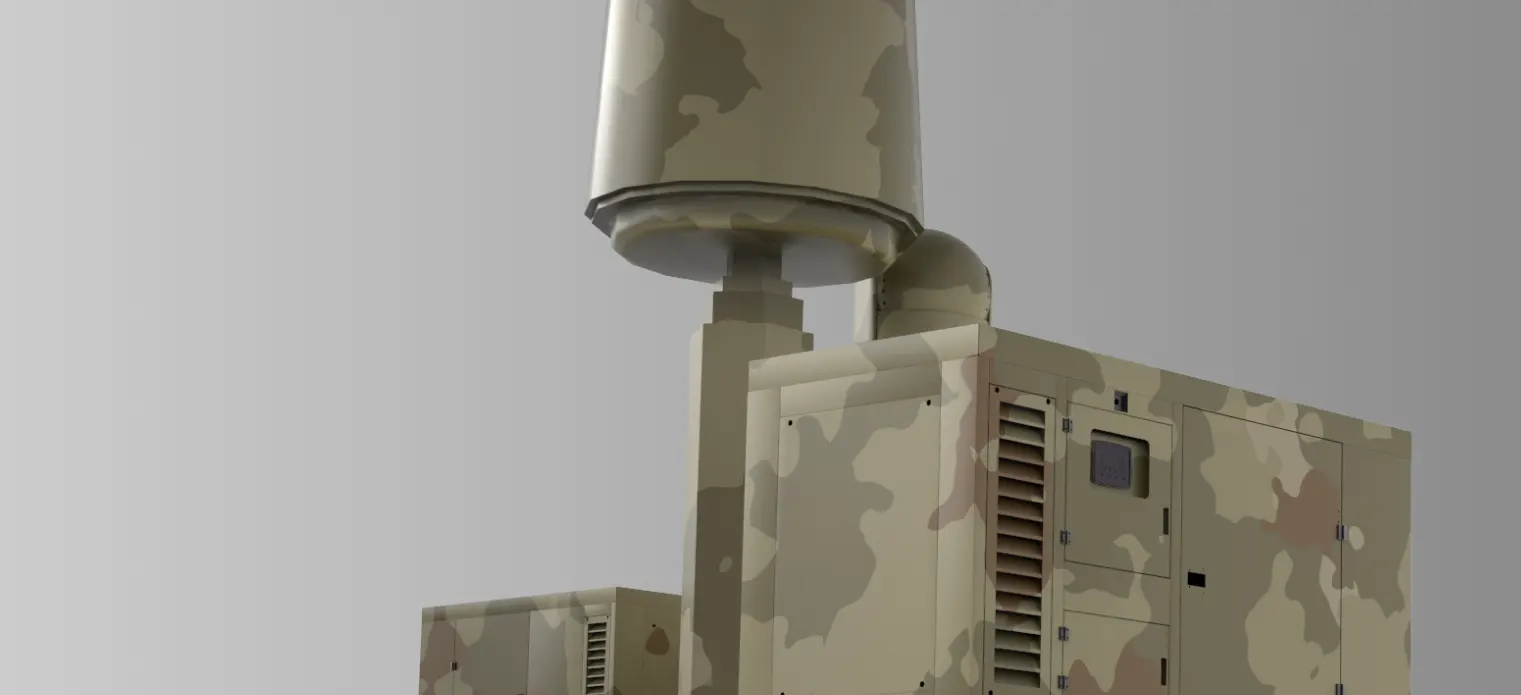

AESA Radar System
Electronically scanned multi-target tracking
Thermal Cameras
SWIR and MWIR thermal imaging
Laser Rangefinder
Precise distance measurement and tracking
Hybrid Power System
Solar panel + generator + battery

ORBITA

ORBITA
Multi-Purpose Radar-Based Intelligence and Tracking Array

ORBITA
Multi-Purpose Radar-Based Intelligence and Tracking Array

Modular Sensor Integration

The platform’s capacity can be expanded, and operational effectiveness optimized, by configuring sensors according to mission requirements.

Multi-Environment Deployment

Flexible platform design enables rapid deployment in diverse geographic conditions, providing continuous surveillance capability.

Multi-Target Tracking System

AESA radar technology provides simultaneous tracking of up to 125 targets, enhancing operational awareness in complex threat scenarios.

Military-Standard Durability

MIL-STD-810 compliant design ensures reliable performance and operational continuity under extreme environmental conditions.

Network-Based Intelligence

Coordinated operation of multiple ORBITA systems delivers wide-area coverage and advanced situational awareness.
