12.7mm RCWS Remote Controlled Weapon System | Advanced Technology Weapon Systems

12.7mm RCWS

Remote Controlled Weapon System

Multi-Role Weapon Configuration and Advanced Control Methods

The 12.7mm RCWS provides operational flexibility through its modular weapon configuration and advanced control systems. It is an adaptive defense system offering a wide range of integration options, from light armored vehicles to heavy-class platforms.

Highlights

With its advanced fire control system and servo-stabilization technology, it delivers superior firing performance against moving targets. Real-time ballistic calculations ensure exceptional accuracy with every shot.
With its modular turret design, it enables weapon integration tailored to the mission. It offers multi-purpose capability with options including a 12.7mm heavy machine gun, a 7.62mm machine gun, or a 40mm automatic grenade launcher.
The fully remote-control system ensures maximum operator safety, while the manual control option provides tactical flexibility and operational readiness for any scenario.

Category	Feature	Value
Modular Weapon Options	12.7mm Heavy Machine Gun	400 Ready to Fire Ammunition
	7.62mm Machine Gun	1000 Ready to Fire Ammunition
	40mm Automatic Grenade Launcher	96 Ready to Fire Ammunition
Movement Limits	Elevation	−30° / +60°
Movement Limits	Side Movement	n × 360°
Thermal Camera	NFOV	4.2° × 3.3°
Thermal Camera	WFOV	20° × 16°
Day Camera	NFOV	1.9° × 1.4°
Day Camera	WFOV	32° × 24°
Laser Range Finder	Measurement Range	> 4km
Physical Characteristics	Weight	< 250kg (Excluding weapon and ammunition)
	Operating Temperature	−32°C / +55°C
	Environmental Standards	MIL‑STD‑810F, MIL‑STD‑461E
	Control Type	Remote Command / Manual Operation

Our Core Advantages

Önder Defense’s Approach

We specialize in RCWS technologies that combine maximum personnel safety with superior firepower. Our 25mm and 12.7mm caliber systems provide effective solutions against both conventional and asymmetric threats.

Precision Fire, Secure Operations

In urban operations, we neutralize sniper and IED threats while minimizing collateral damage. With high first-round hit probability, we ensure ammunition efficiency and reduce logistical burden.

Smart Systems, Strong Defense

Through AI-assisted target recognition and multi-band sensor technologies, we automatically classify threat types. With counter-UAV capabilities and network-centric warfare capacity, we deliver superior protection against next-generation threats.

Operational Superiority

360° All-Around Coverage
With continuous rotation capability, it enables uninterrupted threat detection and immediate response in all directions.
Multi-Weapon Platform
Through its modular design, it offers flexible integration solutions for 12.7mm and 7.62mm machine guns as well as a 40mm automatic grenade launcher.
4+ km Effective Range
Advanced laser rangefinder technology provides long-range target detection and precision engagement capability.
Smart Target Tracking
AI-assisted automatic target detection, tracking, and locking system minimizes operator workload.
Multi-Spectral Vision
Fusion of thermal camera and day optics delivers uninterrupted 24/7 surveillance and engagement capability.
Hybrid Control System
With both manual and remote-control options, it ensures operational flexibility and maximizes personnel safety.

It provides strategic advantage through technological superiority against numerically superior adversaries.

Transformation in Armed Turret Systems

In the transition from traditional fixed-configuration weapon systems to mission-specific modular solutions, the 12.7mm RCWS plays a pioneering role. With the integration of three different weapons into a single turret system, it offers an innovative platform that rapidly adapts to the evolving requirements of the modern battlefield.

"The modular weapon turret solution and low weight of the 12.7mm RCWS provide a game-changing advantage, especially in light-armored vehicles. The system's flexibility is maximized with weapon selection tailored to the operation."

Mechanized Battalion Commander

12.7mm RCWS

12.7mm RCWS
Remote Controlled Weapon System

12.7mm RCWS
Remote Controlled Weapon System

Modular Weapon Turret Solution

A single turret system offering three different weapon options, providing a level of flexibility not found in competing systems. Configurable with 12.7 mm, 7.62 mm, or 40 mm grenade launcher to ensure maximum operational effectiveness.

Low Weight Advantage

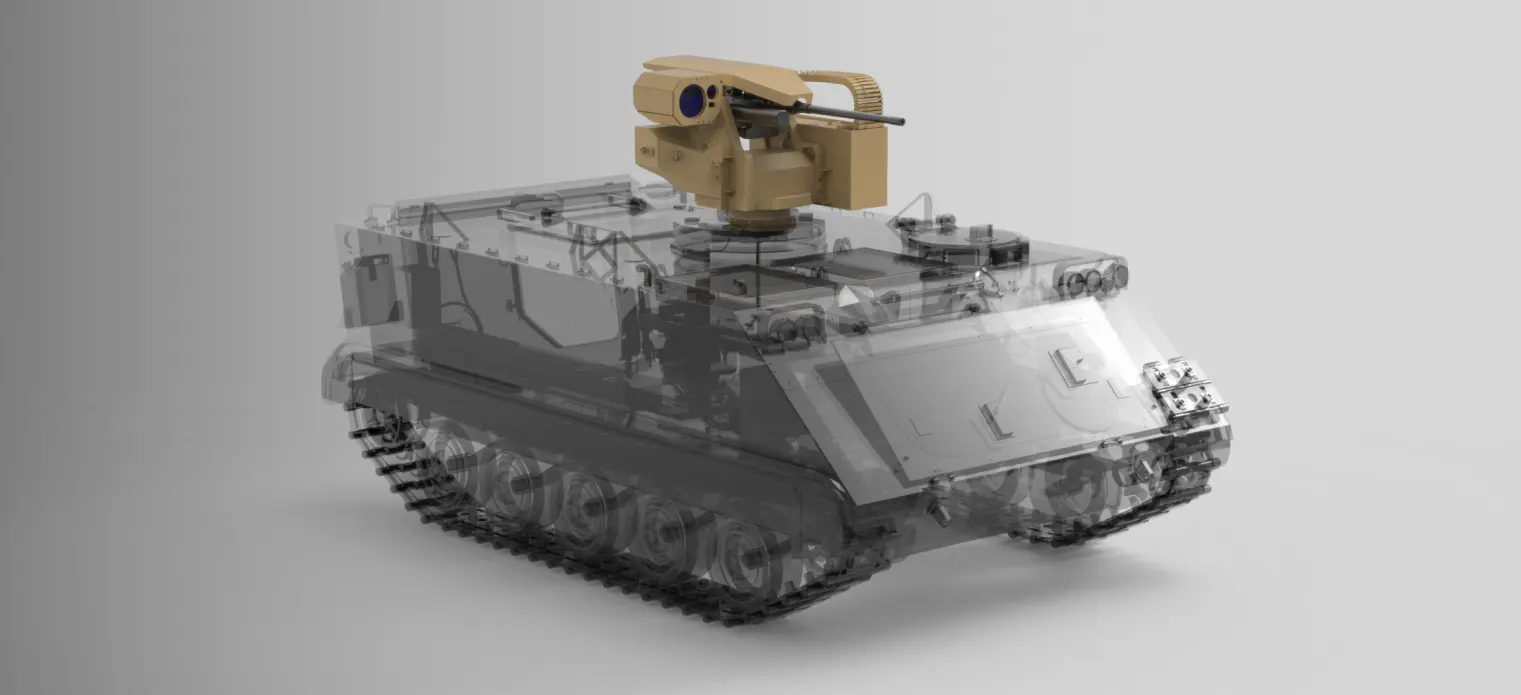

With a weight below 250 kg, it can be easily integrated even onto light armored vehicles. It delivers robust fire support without compromising fuel efficiency or overall vehicle performance.

Dual Control System

Provides operational flexibility through both remote and manual control options. Ensures mission continuity via manual operation even in the event of electronic system failure.

Extended Range of Motion

Superior mobility with an elevation range from −30° to +60°, exceeding that of competing systems. Provides a critical advantage in confined terrain and urban warfare environments.

Rapid Deployment

Easy installation and integration allow quick incorporation into existing vehicle fleets. Delivers maximum operational capability enhancement with minimal vehicle modification.

Did You Know?

Interesting and battlefield-changing features of the 12.7mm RCWS:

Modular Weapon Integration: The 12.7mm heavy machine gun, 7.62mm machine gun, or 40mm grenade launcher can be integrated into a single turret system based on the needs.

Wide Elevation Angle: With an elevation capability of −30° to +60°, it provides effective intervention against targets on upper levels in urban warfare.

Compact Design: With a weight under 250kg, its compact size allows it to be integrated even into light tactical vehicles.
